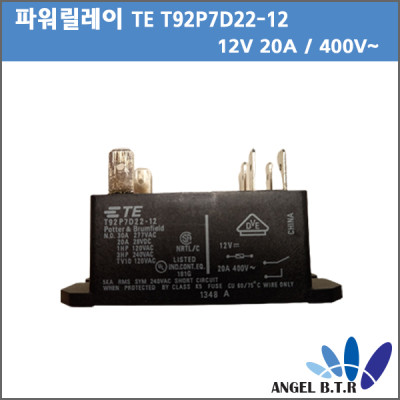

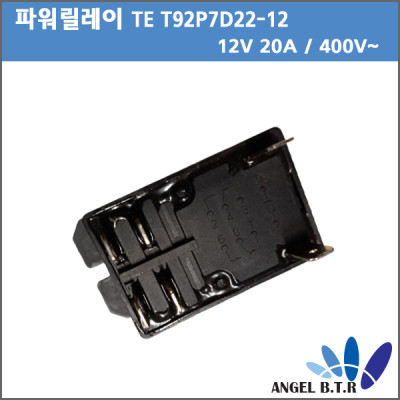

![[중고] [파워릴레이] TE T92P7D22-12 DC12V 20A/12V20A 400V~ SPST-NO TOP MOUNT](http://a-onelite.com/data/item/1635230375/thumb-POWERRELAYTE1_60x60.jpg)
등록된 상품이 없습니다.
| 브랜드 | TE | |
|---|---|---|
| 모델명 | T92P7D22-12 | |
| 코일전압 | DC12V | |
| 코일전류 | 140mA | |
| 코일저항 | 86Ω | |
| 코일유형 | 비래칭 | |
| 접점전류등급 | 20A | |
| 접점전압정격(ac) | 28VAC | |
| 최대작동온도 | 85°C | |
| 최대정격전압 | 400V | |
| 최소작동온도 | -55°C~ 80°C | |
| 작동시간 | 15ms | |
| 코일전원 | 1.5W | |
| 릴레이유형 | 자동차 | |
| 릴리스시간 | 15ms | |
| 터미널수 | 6 | |
| 정격전압 | 400V | |
| 필수작동전압 | 9VDC | |
| 필수릴리스전압 | 1VDC | |
| 무게 | 90g | |
| 사이즈 | 68mm X 34.54 mmx37mm |
| 품명 | 파워릴레이 |
|---|---|
| 모델명 | 92P7D22-12 |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | 일본 |
| 제조자 | 상품페이지 참고 |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 상품페이지 참고 |
사용후기가 없습니다.
